今回の記事ではローカル環境で動作確認するまでのやり方を解説しています。
[ 環境構築 ]
Node.jsのインストール
下記にアクセスします。
nodejs.org

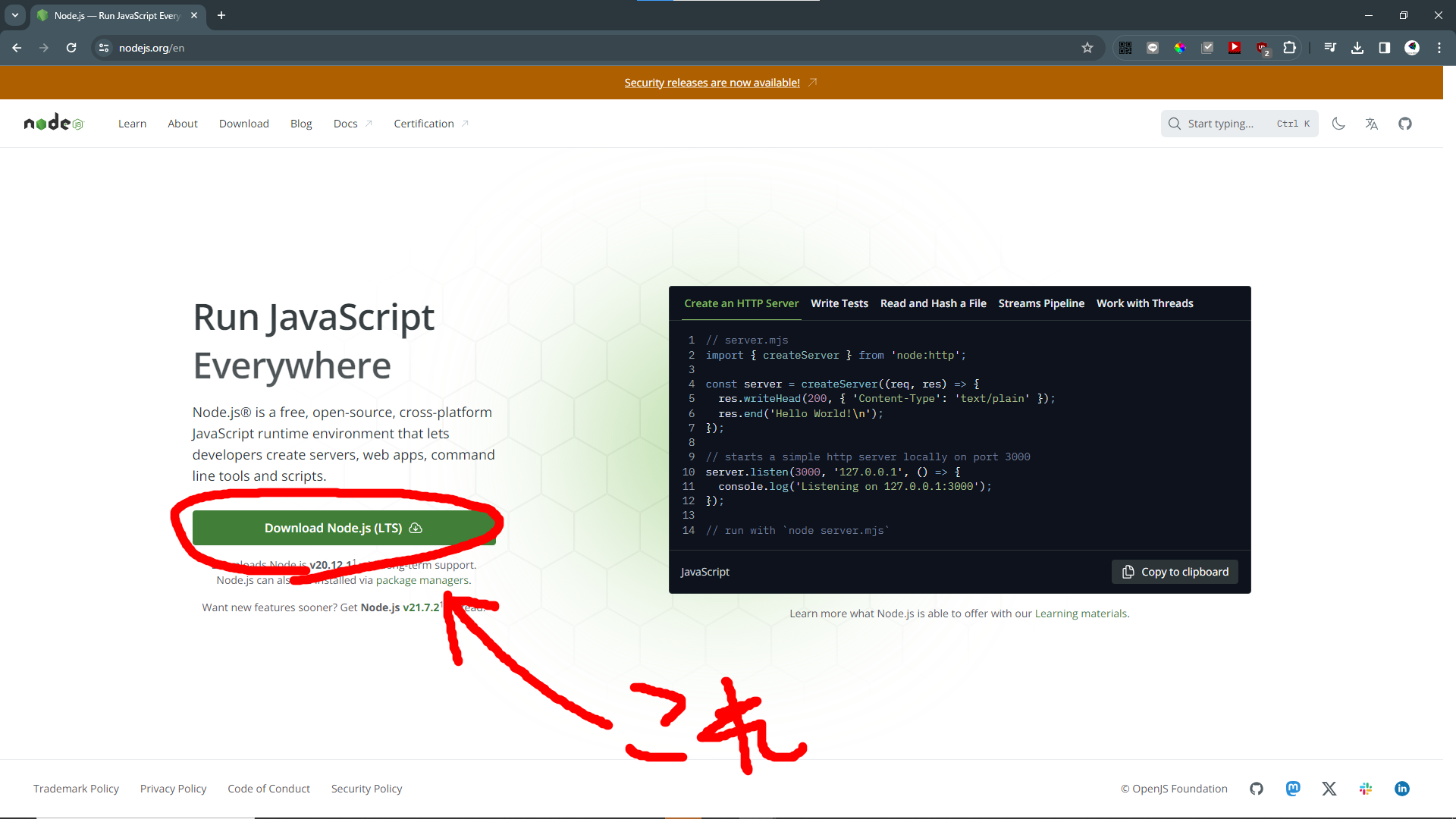

「Download Node.js (LTS)」をクリックして「Node.js」をダウンロードします。

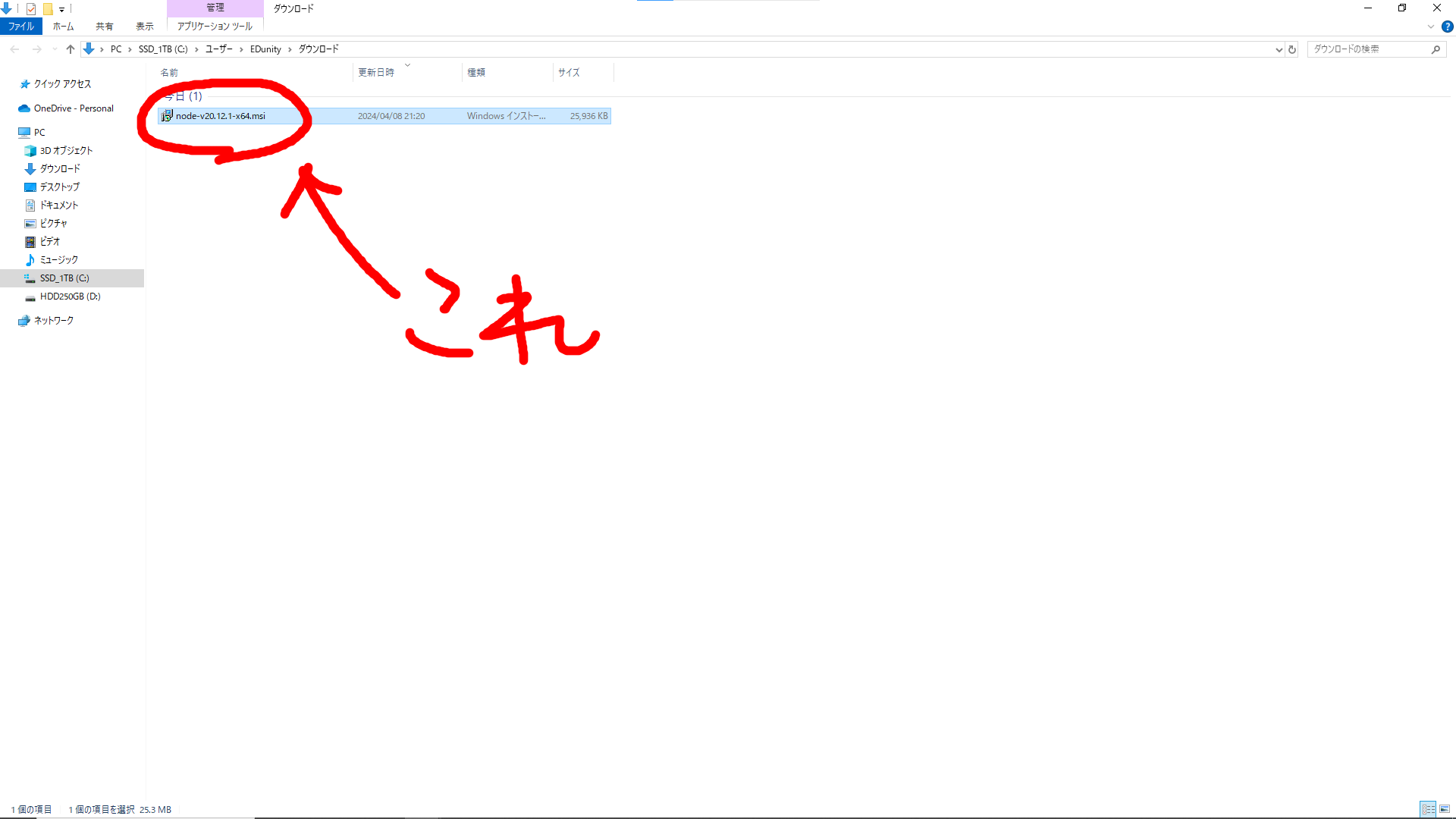

ダウンロードが完了したらダウンロードフォルダ内にある「node-v20.12.1-x64.msi」を起動します。

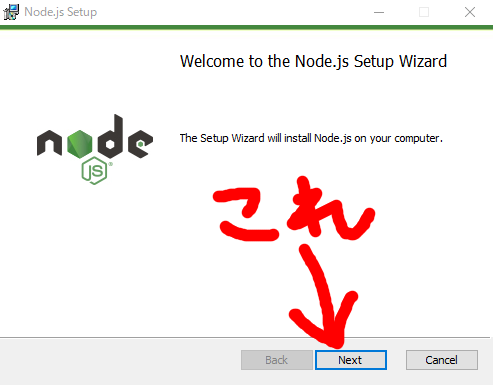

「Next」をクリックします。

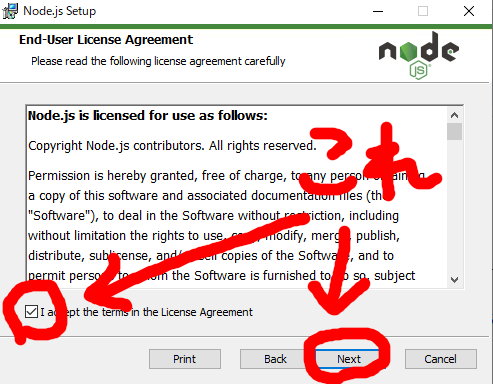

「I accept the terms in the License Agreement」にチェックを入れて「Next」をクリックします。

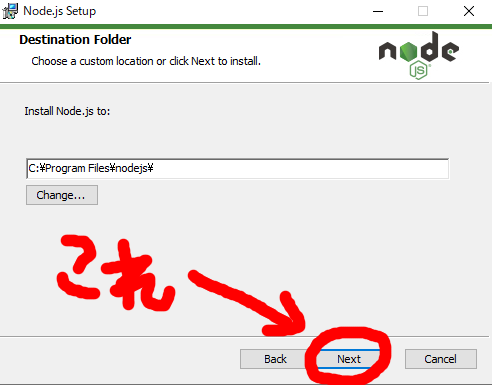

「Node.js」のインストール先を指定して「Next」をクリックします。

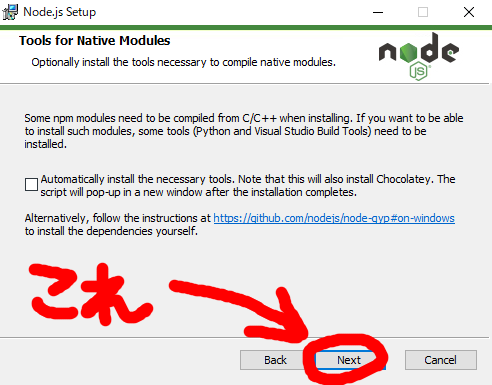

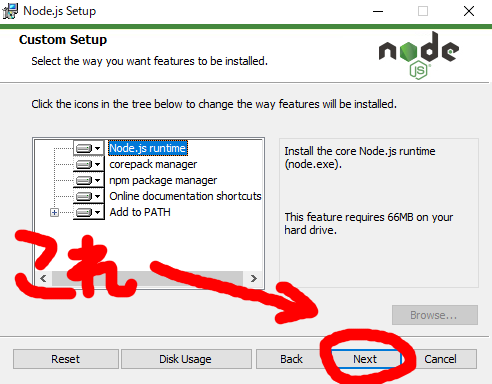

「Next」をクリックします。
「Next」をクリックします。

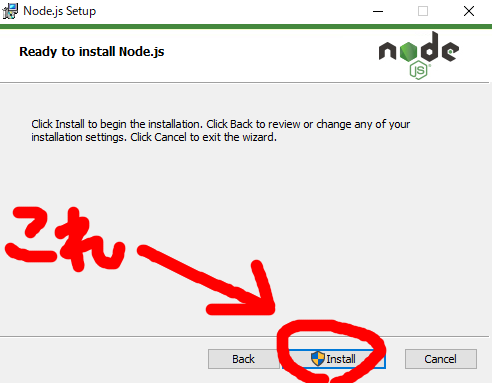

「Install」をクリックします。

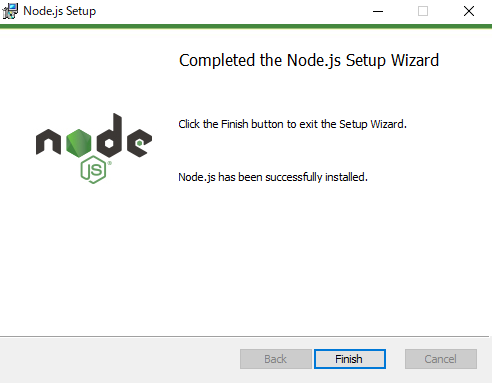

下記のウィンドウが表示されたらインストール完了です。
コマンドプロンプトで「node -v」を実行して「Node.js」のバージョンが表示されれば「Node.js」はインストールされています。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>node -v v20.12.1 C:\Users\EDunity>
Expressのインストール
コマンドプロンプトで「npm install express」を実行して「Express」をインストールします。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>npm install express up to date, audited 97 packages in 1s 15 packages are looking for funding run `npm fund` for details 3 moderate severity vulnerabilities To address all issues (including breaking changes), run: npm audit fix --force Run `npm audit` for details. C:\Users\EDunity>
コマンドプロンプトで「npm list express」を実行して「Express」のバージョンが表示されれば「Express」はインストールされています。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>npm list express EDunity@ C:\Users\EDunity `-- express@4.19.2 C:\Users\EDunity>
Socket.ioのインストール
コマンドプロンプトで「npm install socket.io」を実行して「Socket.io」をインストールします。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>npm install socket.io added 23 packages, and audited 120 packages in 2s 15 packages are looking for funding run `npm fund` for details 3 moderate severity vulnerabilities To address all issues (including breaking changes), run: npm audit fix --force Run `npm audit` for details. C:\Users\EDunity>
コマンドプロンプトで「npm list socket.io」を実行して「Socket.io」のバージョンが表示されれば「Socket.io」はインストールされています。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>npm list socket.io EDunity@ C:\Users\EDunity `-- socket.io@4.7.5 C:\Users\EDunity>
Webpackのインストール
コマンドプロンプトで次のコマンドを順番に実行します。
「cd desktop」「mkdir tmp」「cd tmp」「npm init -y」「npm install webpack webpack-cli --save-dev」
これらのコマンドはデスクトップに「tmp」フォルダを作成してその中に「Webpack」をインストールするコマンドです。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>cd desktop C:\Users\EDunity\Desktop>mkdir tmp C:\Users\EDunity\Desktop>cd tmp C:\Users\EDunity\Desktop\tmp>npm init -y Wrote to C:\Users\EDunity\Desktop\tmp\package.json: { "name": "tmp", "version": "1.0.0", "description": "", "main": "index.js", "scripts": { "test": "echo \"Error: no test specified\" && exit 1" }, "keywords": [], "author": "", "license": "ISC" } C:\Users\EDunity\Desktop\tmp>npm install webpack webpack-cli --save-dev added 119 packages, and audited 120 packages in 7s 16 packages are looking for funding run `npm fund` for details found 0 vulnerabilities C:\Users\EDunity\Desktop\tmp>
この時点で「tmp」の中身は下記のようになっているはずです。
tmp ├ node_modules │ └ ... ├ package.json └ package-lock.json
「tmp」フォルダ内にある「package.json」ファイルの「"main"」と「"scripts"」を下記のように書き換えます。
「〇〇〇」の部分はそれぞれのバージョンにします。
{ "name": "tmp", "version": "1.0.0", "description": "", "main": "server.js", "scripts": { "start": "node server.js" }, "keywords": [], "author": "", "license": "ISC", "devDependencies": { "webpack": "^〇〇〇", "webpack-cli": "^〇〇〇" } }
雛形作成
「tmp」フォルダ内に「server.js」ファイルを作成して中身は下記のようにします。
const Express = require("express"); const Http = require("http"); const Path = require("path"); const SocketIO = require("socket.io"); const App = Express(); const Server = Http.Server(App); const IO = SocketIO(Server); class Player { constructor(_ID, _Name, _PosX, _PosY) { this.ID = _ID; this.Name = _Name; this.Width = 64; this.Height = 64; this.PosX = _PosX; this.PosY = _PosY; this.Movement = {}; } }; const Port = process.env.PORT || 3000; const FrameRate = 60; const Players = {}; IO.on("connection", function(_Socket) { _Socket.on("Setup", function(_Name, _PosX, _PosY) { if(_Name != null) { Players[_Socket.id] = new Player(_Socket.id, _Name, _PosX, _PosY); } }); _Socket.on("Movement", function(_Movement) { if(_Socket.id in Players) { Players[_Socket.id].Movement = _Movement; } }); _Socket.on("disconnect", () => { if(_Socket.id in Players) { delete Players[_Socket.id]; } }); }); setInterval(function() { for(const i in Players) { if(Players[i].Movement["w"]) { Players[i].PosY -= 5; } if(Players[i].Movement["s"]) { Players[i].PosY += 5; } if(Players[i].Movement["d"]) { Players[i].PosX += 5; } if(Players[i].Movement["a"]) { Players[i].PosX -= 5; } } IO.sockets.emit("Draw", Players); }, 1000 / FrameRate); App.use("/public", Express.static(__dirname + "/public")); App.get("/", (_Request, _Response) => { _Response.sendFile(Path.join(__dirname, "/public/index.html")); }); Server.listen(Port, function() { console.log("Starting Server on port " + Port + "."); });
「tmp」フォルダの中に「public」フォルダを作成します。この時点で「tmp」の中身は下記のようになっているはずです。
tmp ├ node_modules │ └ ... ├ public ├ package-lock.json ├ package.json └ server.js
「public」フォルダ内に「index.html」ファイルを作成して中身は下記のようにします。
<html lang="ja"> <head> <title>tmp</title> <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/p5@1.4.0/lib/p5.js"></script> <script type="text/javascript" src="/socket.io/socket.io.js"></script> <script type="text/javascript" src="/public/game.js"></script> <link type="text/css" rel="stylesheet" href="/public/style.css"> </head> <body> <hr> <div class="Parent"> <div id="Parent"> </div> </div> <hr> </body> </html>
「public」フォルダ内に「style.css」ファイルを作成し、中身は下記のようにします。
.Parent { display:block; text-align:center; }
「public」フォルダ内に「game.js」ファイルを作成して中身は下記のようにします。
const Socket = io(); let Canvas_Sketch; const Width_Sketch = 600; const Height_Sketch = 600; const Keys = ["w", "s", "d", "a"]; const Movement = {}; function setup() { Canvas_Sketch = createCanvas(Width_Sketch, Height_Sketch); Canvas_Sketch.parent("Parent"); background(225); Socket.on("connect", function() { Socket.emit("Setup", prompt("Please enter your name."), Math.random() * Width_Sketch, Math.random() * Height_Sketch); }); } function draw(){ } function keyPressed() { if(Keys.includes(key)) { Movement[key] = true; Socket.emit("Movement", Movement); } } function keyReleased() { if(Keys.includes(key)) { Movement[key] = false; Socket.emit("Movement", Movement); } } Socket.on("Draw", function(_Players) { background(225); for(const i in _Players) { text(_Players[i].Name + "#" + _Players[i].ID, _Players[i].PosX + 15, _Players[i].PosY - 15); ellipse(_Players[i].PosX, _Players[i].PosY, 30, 30); } });
この時点で「tmp」の中身は下記のようになっているはずです。
tmp ├ node_modules │ └ ... ├ public │ ├ index.html │ ├ style.css │ └ game.js ├ package.json ├ package-lock.json └ server.js
[ 動作確認 ]
コマンドプロンプトで「node desktop/tmp/server.js」を実行してサーバーを起動します。
Microsoft Windows [Version 10.0.19045.4170] (c) Microsoft Corporation. All rights reserved. C:\Users\EDunity>cd desktop C:\Users\EDunity\Desktop>cd tmp C:\Users\EDunity\Desktop\tmp>node server.js Starting Server on port 3000.
下記にアクセスします。
http://localhost:3000/

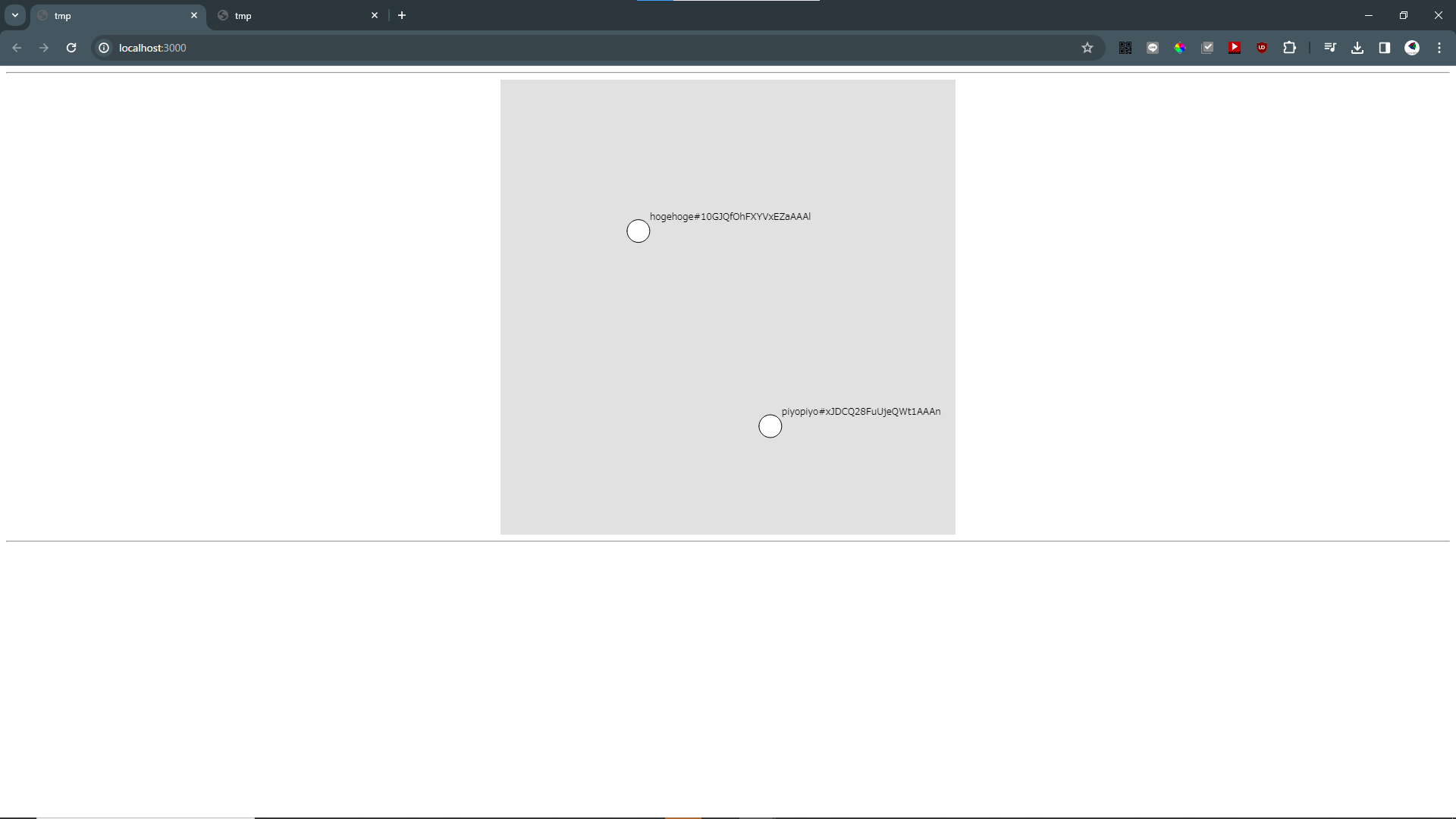

アクセスすると白い円が表示されるはずです。WASDで白い円は操作できます。
